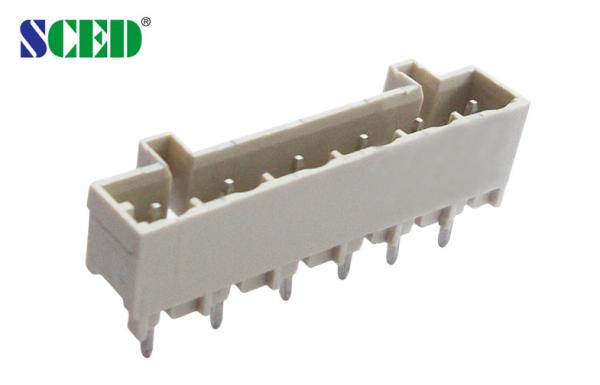

Phoenix Contact Plug in Terminal Blocks , Pluggable Terminal Blocks

Name: Phoenix Contact Plug in Terminal Blocks Pluggable Terminal Blocks
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TP508H-75

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Imflammability : UL 94, V-0

Voltage : 300V

Current : 18A

Pitch : 7.50mm

Poles : 2 -16 P

Color : Grey, other color available

Contact Now

Phoenix Contact Plug in Terminal Blocks , Pluggable Terminal Blocks

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 18		300 / 18
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	500 / 18	630 / 18	1000 / 18
Rated Surge Voltage KV	6	6	6
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	1.4
Pin Dimension mm	1.0*1.0

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Phoenix Contact Plug in Terminal Blocks , Pluggable Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Phoenix Contact Plug in Terminal Blocks , Pluggable Terminal Blocks
